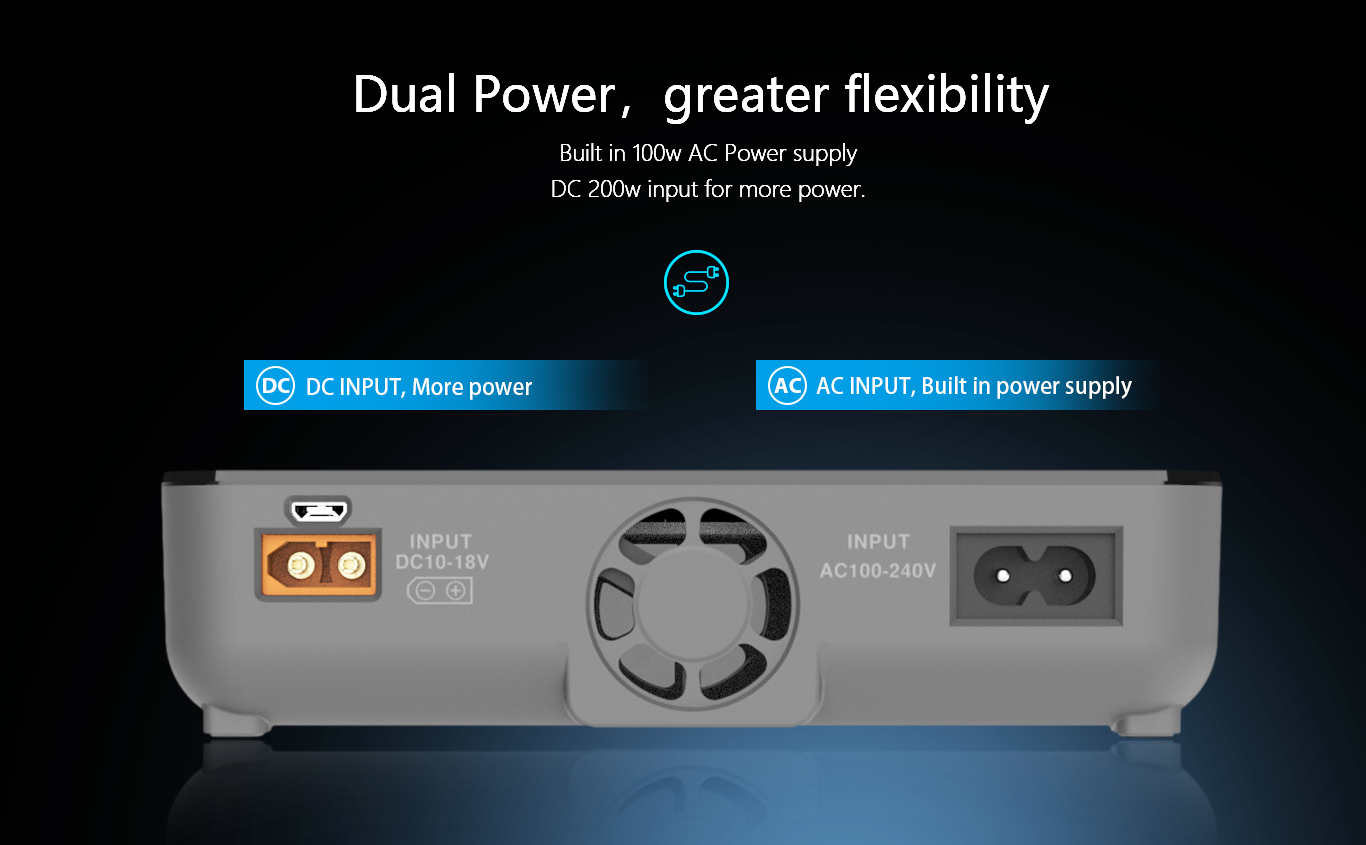

DUAL POWER, GREATER FLEXIBILITY
Built in 100w AC Power supply DC 200w input for more power.

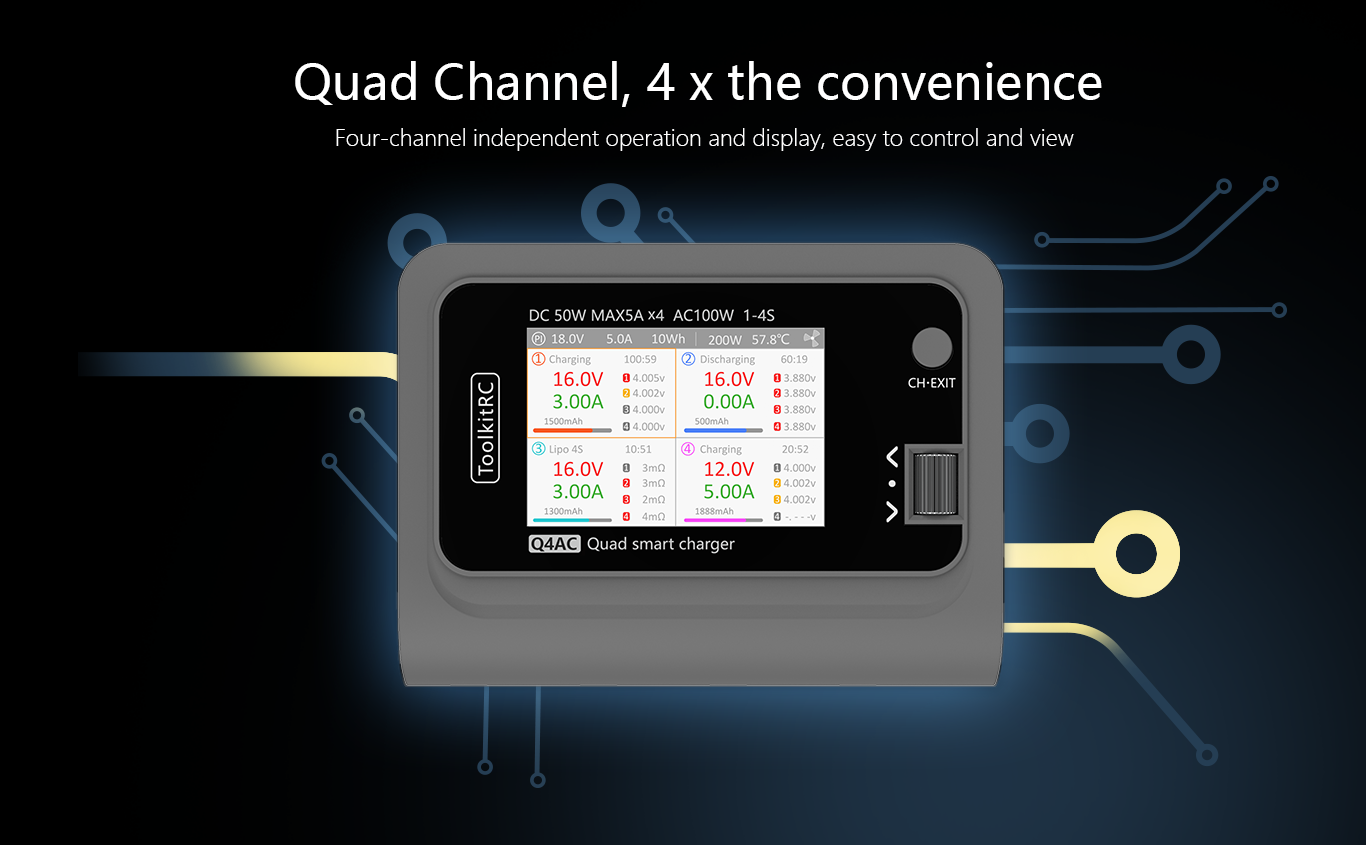

QUAD CHANNEL,
4× THE CONVENIENCE
Four-channel independent operation and display, easy to control and view

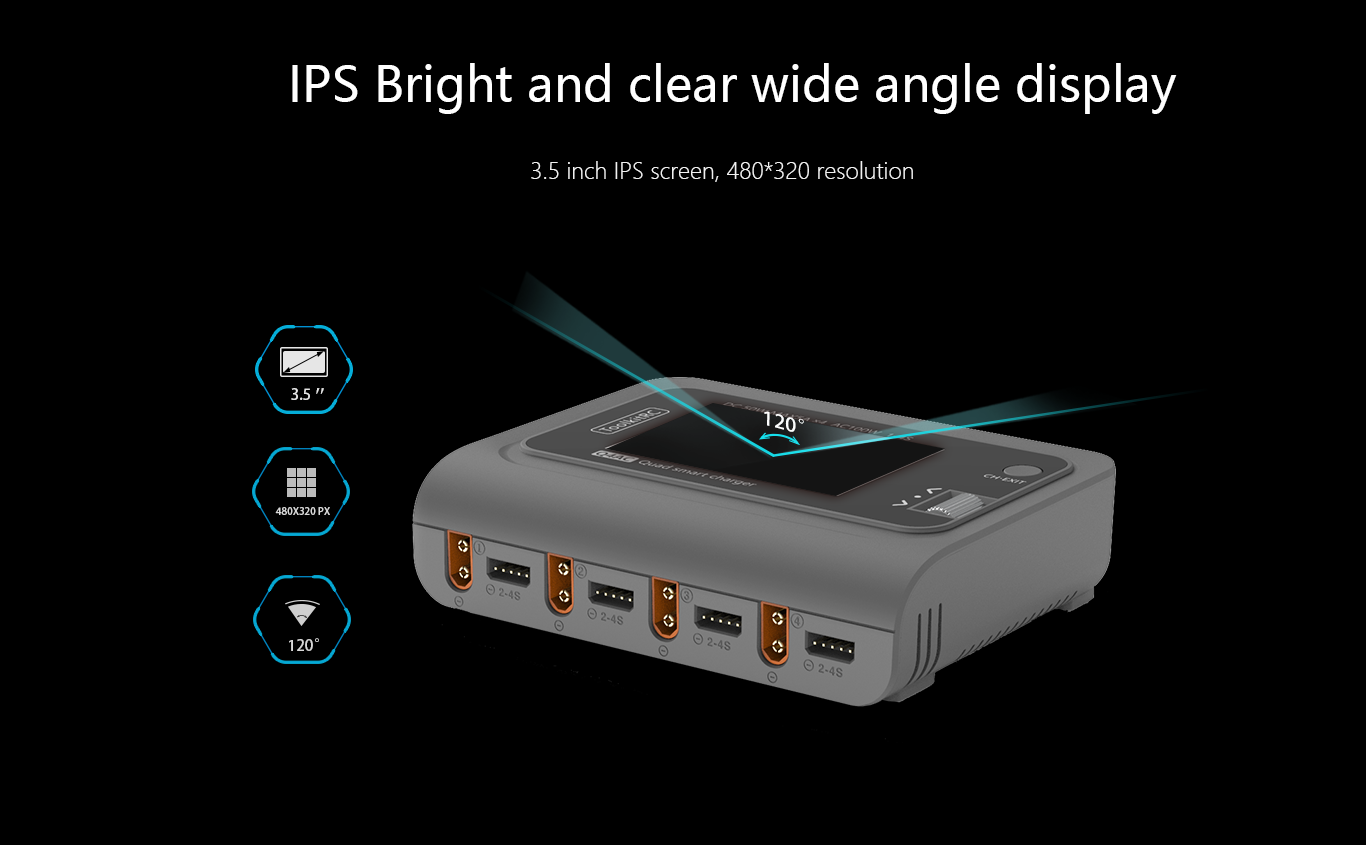

IPS BRIGHT AND CLEAR
WIDE ANGLE DISPLAY
32 BIT ARM PROCESSOR
High-precision charging management and ballancing accuracy <0.005V

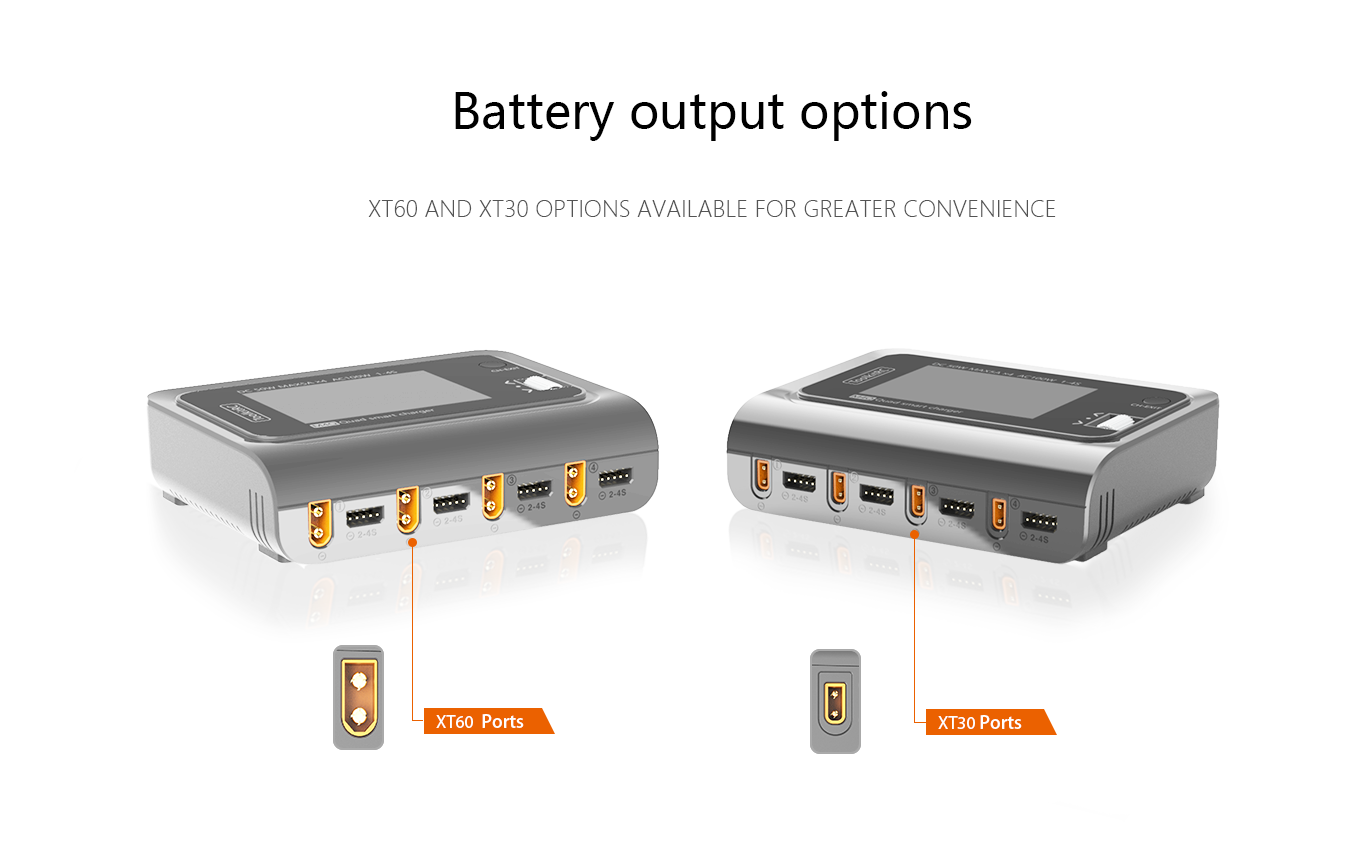

BATTERY OUTPUT OPTIONS
The default stock is XT60 option, XT30 option only for custom orders (MOQ 500pcs)

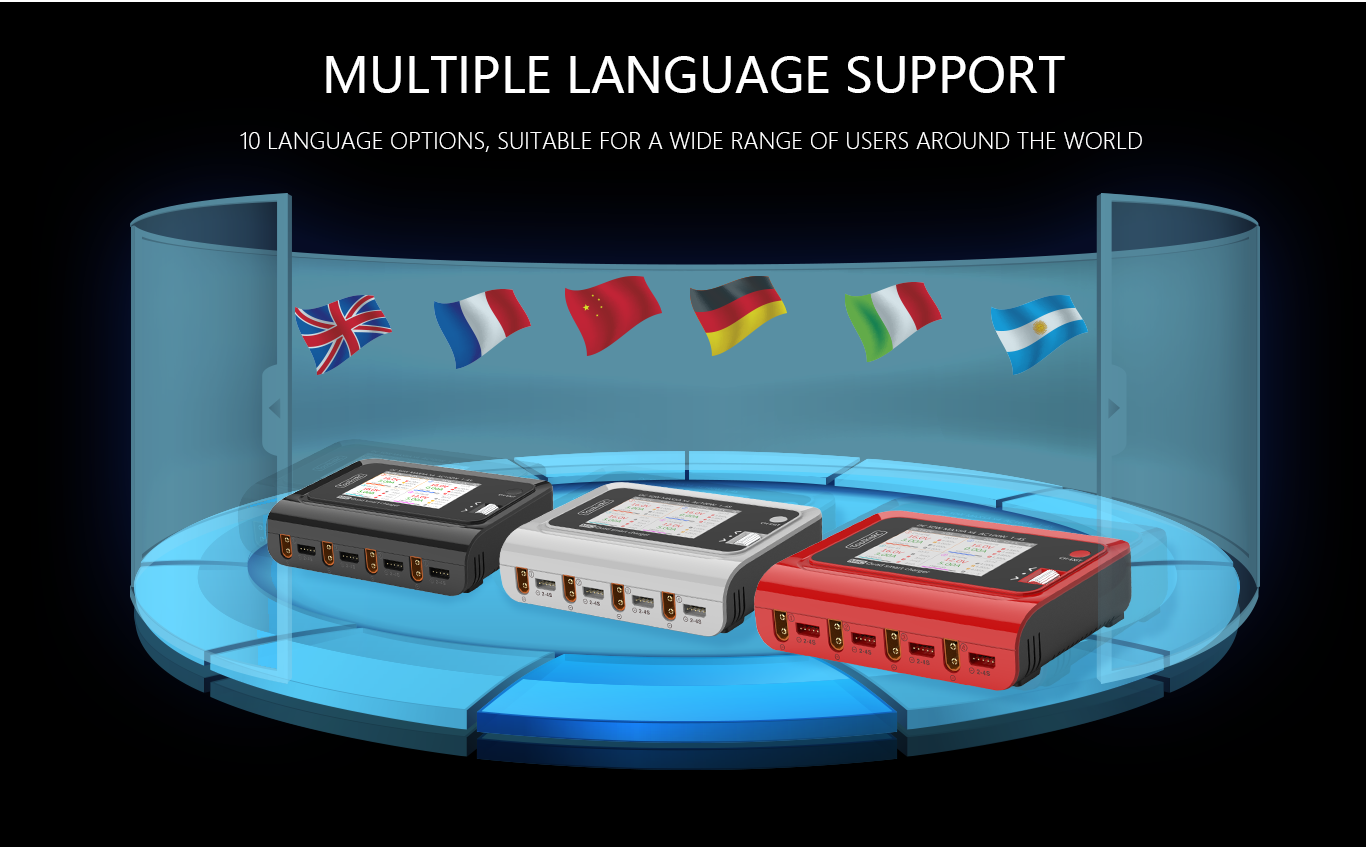

MULTIPLE LANGUAGE SUPPORT
10 Language options, suitable for a wide range of users around the world

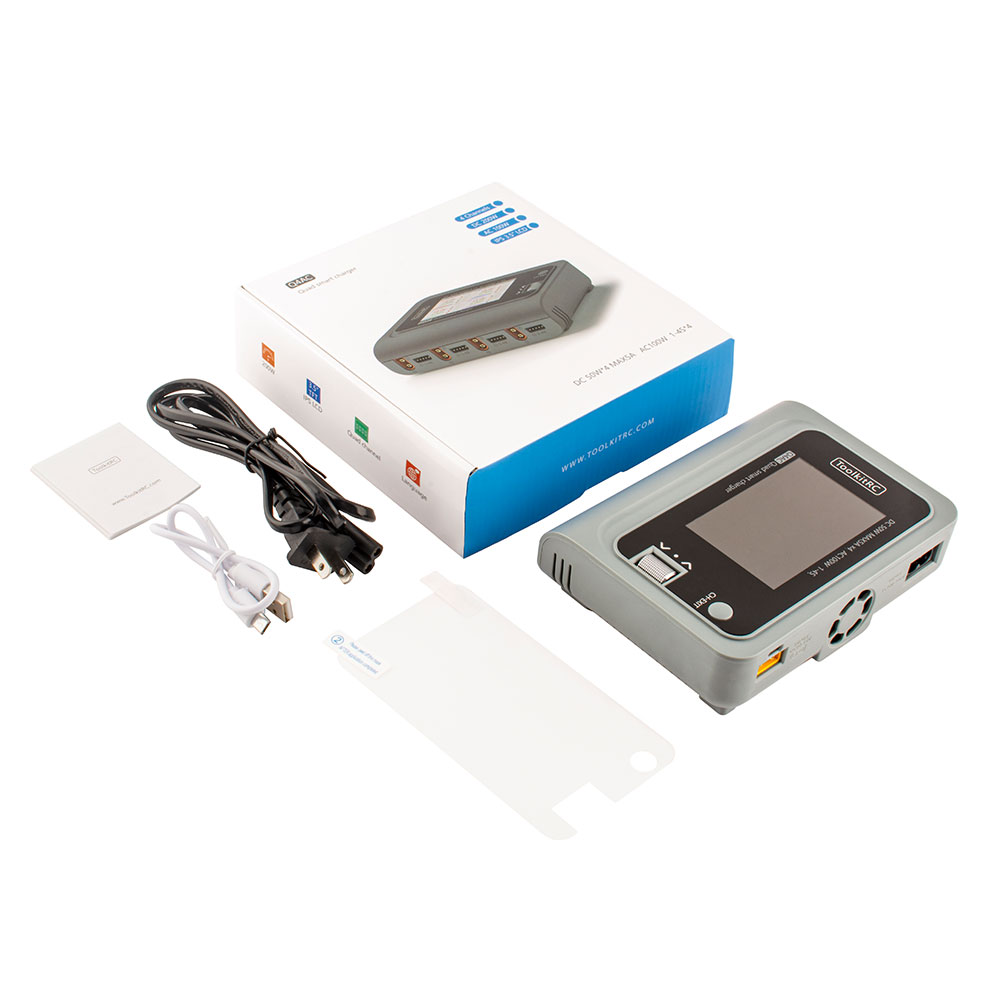

IN THE BOX
Q4AC Charger × 1, AC Input Cable × 1, USB Cable × 1, Quick Manual × 1, Screen Protector × 1
SPEC
Input voltage
AC100-240V@MAX1.5A
DC10-18V@MAX20A
Battery type
LiPo LiHV LiFe Lilon@1-4S
NiMH @1-10S Pb @1-8S
Balance current
240mA @2-4S
Balance accuracy
<0.005V
Charging power
0.1-5A@50W×4 DC IN
0.1-5A@50W×2 AC IN
0.1-5A@25W×4 AC IN
Discharging power
0.1-2A@5W×4
Voltage range
0.2V-5.0V @1-4S
Internal resistance
1-100mR @1-4S
USB
Upgrade@USB2.0
Product size
150×112×36.5mm
Product wight
450g
Pack size
160×160×46mm
Pack wight
600g
LCD
IPS 3.5″ 480×320 px
